IP65 Rugged Kiosk Metal Industrial Keyboard With Touchpad Function Keys And Number Keypad

Place of Origin : China

Brand Name : KINGLEADER

Model Number : MKB-FN103A-TP

Certification : CE,FCC

MOQ : 1pcs

Price : US$

Packaging Details : 1pcs/box, 10pcs/ctns

Delivery Time : 20days

Payment Terms : T/T,Paypal

Supply Ability : 2000pcs/month

Material of Front Panel : Stainless Steel

Material of Back Panel : Aluminum Alloy

Mounting Method : Panel Mount From The Rear Side

Number of Keys : 103Keys

Protection Level : IP65

Interface : USB or PS/2

Contact Now

IP65 Rugged Kiosk Metal Industrial Keyboard With Touchpad Function Keys And Number Keypad

MKB-FN103A-TP

Key Features:

1) 103 keys(of them 12 function keys), panel mount
2) Integrated touchpad and numeric keypad;
3) Protruding full travel(2.0mm)keys with etched or laser engraved graphics, excellent tactile feel;
4) Specially designed to operate in harsh environments, making them ideal for kiosks and other applications in public places.
5) Built from stainless steel, high vandal-proof.
6) Dust-proof and liquid-proof, meet IP65 requirement
7) PS/2 or USB interface, easy to plug into computer directly
8) Customizable

Specifications

Material

Front panel & Keys: Brushed stainless steel

Back panel: Aluminum alloy

Key cap: Protruding full travel key(2.0mm) with etched or laser engraved graphics

Touchpad: Synaptics high-sensitivity touchpad

Electrical Data

Power supply voltage: DC 5 V 5%

Current rating: 20 mA

Touchpad resolution:1000dpi

Interface: USB or PS2

EMC compliant.
Emission: EN 50081-1
Immunity: EN 50082-1

FCC: Part 15, class B

Safety: EN 60950, CE compliant

Environmental Characteristics

Operating temperature: -20 C to + 60 C

Storage temperature: - 40 C to + 80 C

Saline mist: 96 hours, IEC 60512-6

Damp heat test at + 40 C: 21 days, IEC 60512-6

Dry heat test at + 85 C: 10 days, IEC 60512-6

Mechanical Data

Actuation force for key:120±15g

Key travel: 2.0mm

Lifetime (cycles): Min 5, 000, 000 actuations

Sealing protection: IP65/NEMA4X from the front

Vibration resistance: 5 Hz -200 Hz, IEC 60512-4

Shock resistance: 3 axis 150 m/s - 11 ms, IEC 60512-4

Operation system

PS2: Win NT4, 98SE, 98ME, 2000, XP

USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX

Weight and Dimension

Weight: 2.2kg

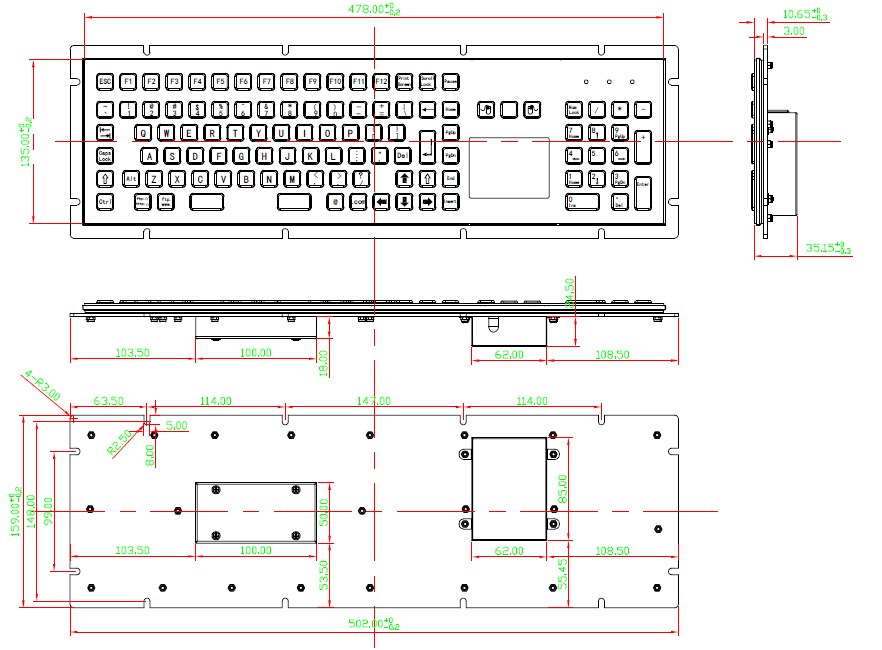

Dimension:
Front panel: 478.0 x 135.0 mm
Back panel: 502.0 x 159.0 mm, thickness:32.10mm(to the tallest component)

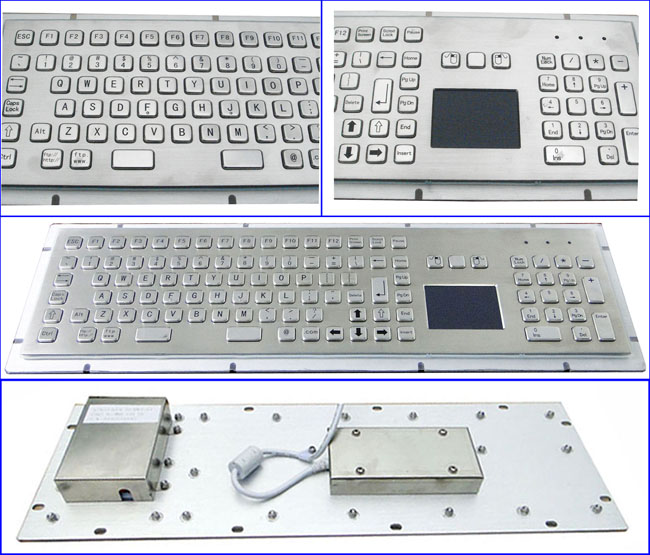

IP65 Rugged Kiosk Metal Industrial Keyboard With Touchpad Function Keys And Number Keypad

IP65 Rugged Kiosk Metal Industrial Keyboard With Touchpad Function Keys And Number Keypad
